DGX1500

Product details

Rated output 200~180 t/h

Mixing power 2×45 kW

Contact Now

DGX1500 Parameters

MODEL-DGX Series	DGX1500	DGX2000	DGX3000	DGX4000	DGX4500	DGX5000

Rated Production Capacity	120t/h	180 t/h	240 t/h	320 t/h	360 t/h	400 t/h
Cold Feeder Bin	5 x 10m³	5 x 10m³	5 x 18m³	6 x 18m³	6 x 18m³	6 x 18m³

Dryer Drum Size	Ø 1.9m x 9m	Ø 2.2m x 9m	Ø 2.5m x 9m	Ø 2.8m x 12m	Ø 2.8m x 12m	Ø 3.0m x 12m
Dust Collector	Primary gravity + Bag filter
Screen	4	5	5 or 6	6	6	6

Hot Bin Volume	14m³	21m³	45m³	75m³	75m³	80m³

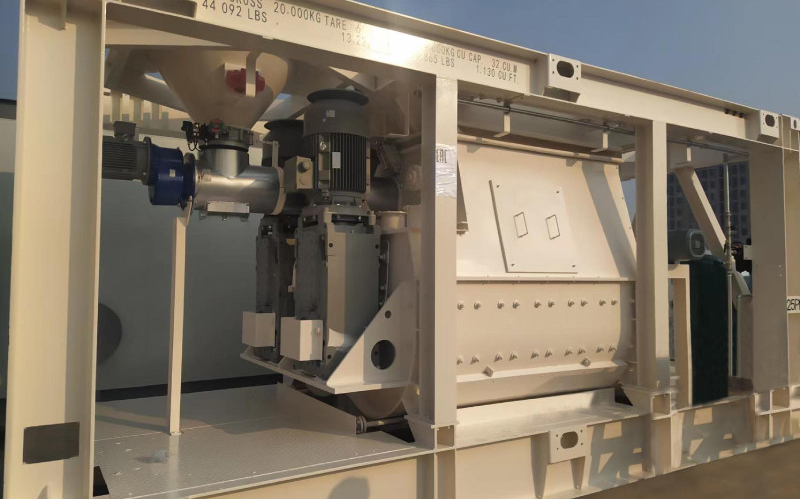

Mixer Capacity	2000kg	2000kg	3300kg	4200kg	5500kg	5500kg
Control System	DG Leap + PLC
Emission Rank	● Dust Density ≤ 20 mg/Nm³
	● Cabin Noise ≤ 70 dB
	● Ringelmann Blackness Class Ⅰ
Note	● Some specifications / options might not be available in some countries due to local regulations. ● Specifications / options are constantly updated and subject to change.

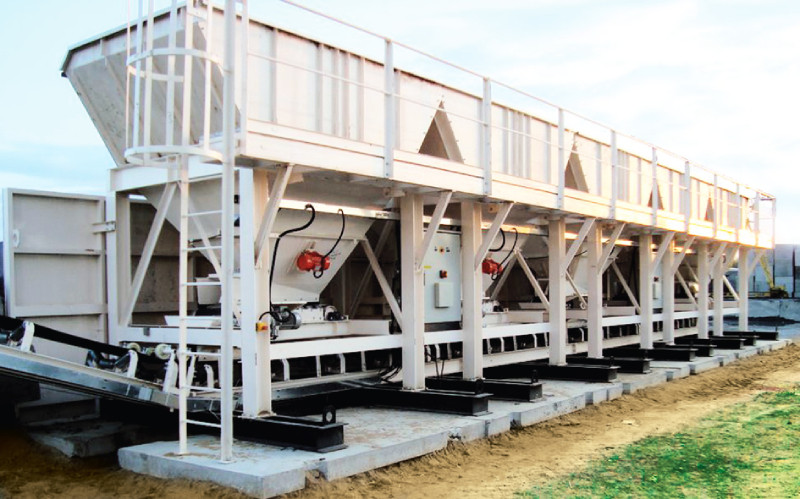

1. Cold Feeder System

1) Frequency inverter belt conveyor. 2) Each compartment is equipped with an aggregate shortage alarming device. 3) Belt driving system consisted of Siemens motor+ Bonfiglioli reducer+ SKF bearing.

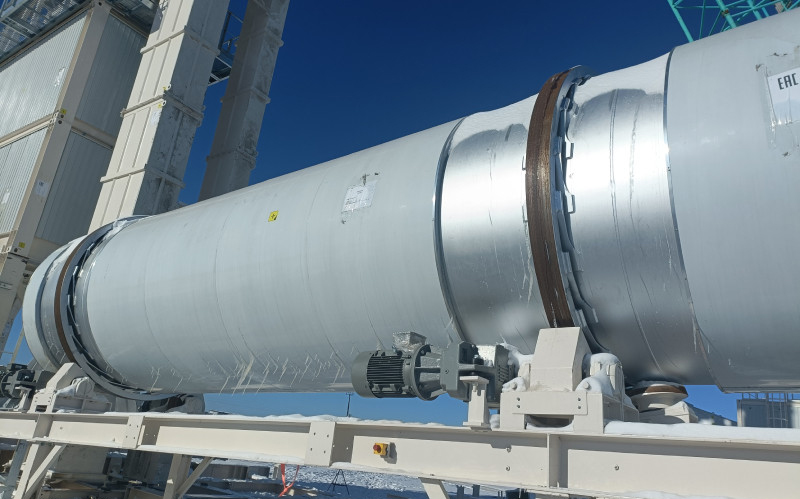

2. Drying System

1) The drum flights are applied in HARDOX high strength wear-resistance steel to prove long service time. 2) Employing thermal insulating rock wool material that can keep the energy inside, reducing heat loss. 3) Multiple-function ABS burner, kinds fuel (gas, oil, diesel, coal) can be chosen as required.

3. Dust Collecting System

1) Two stage dust filtration system: primary gravity+ bag filter. 2) Frequency control exhaust fan.
