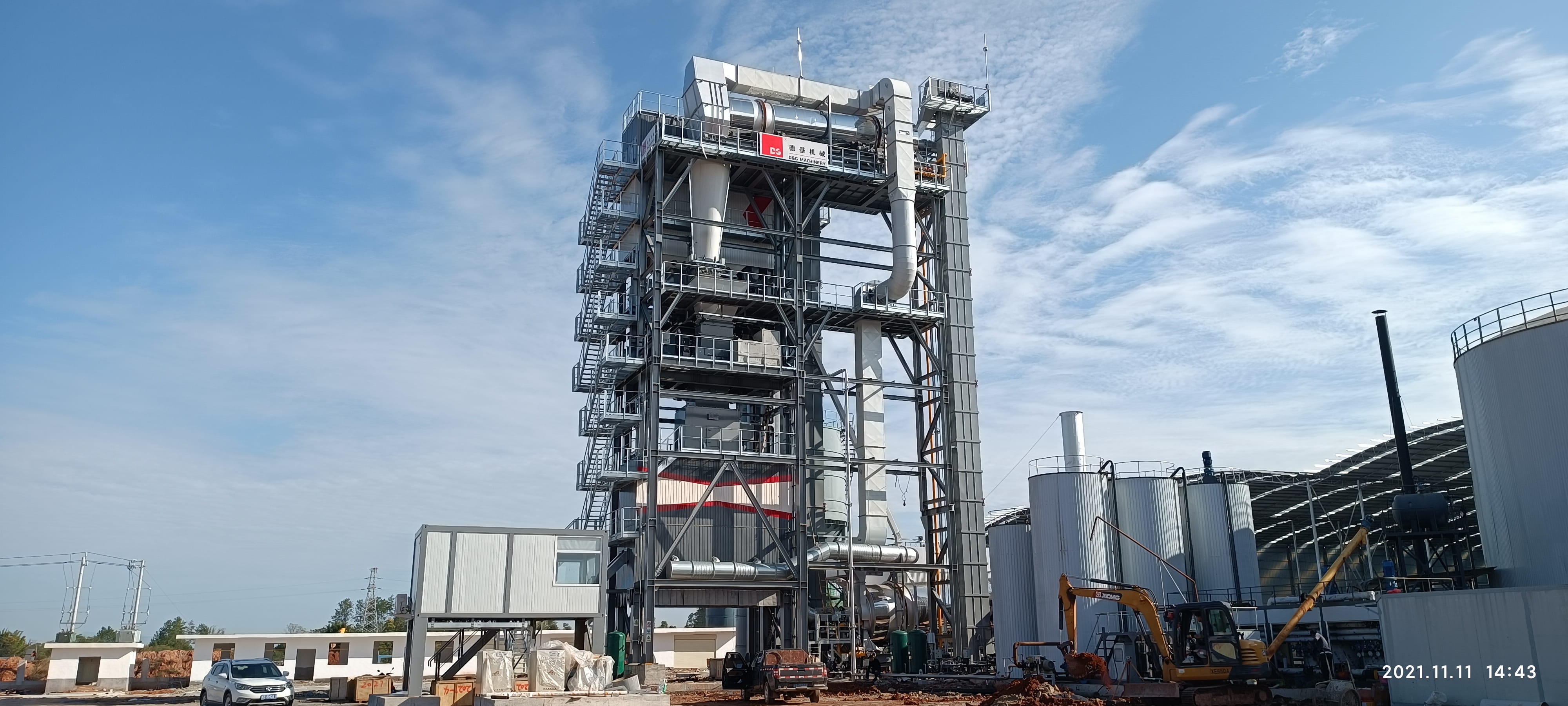

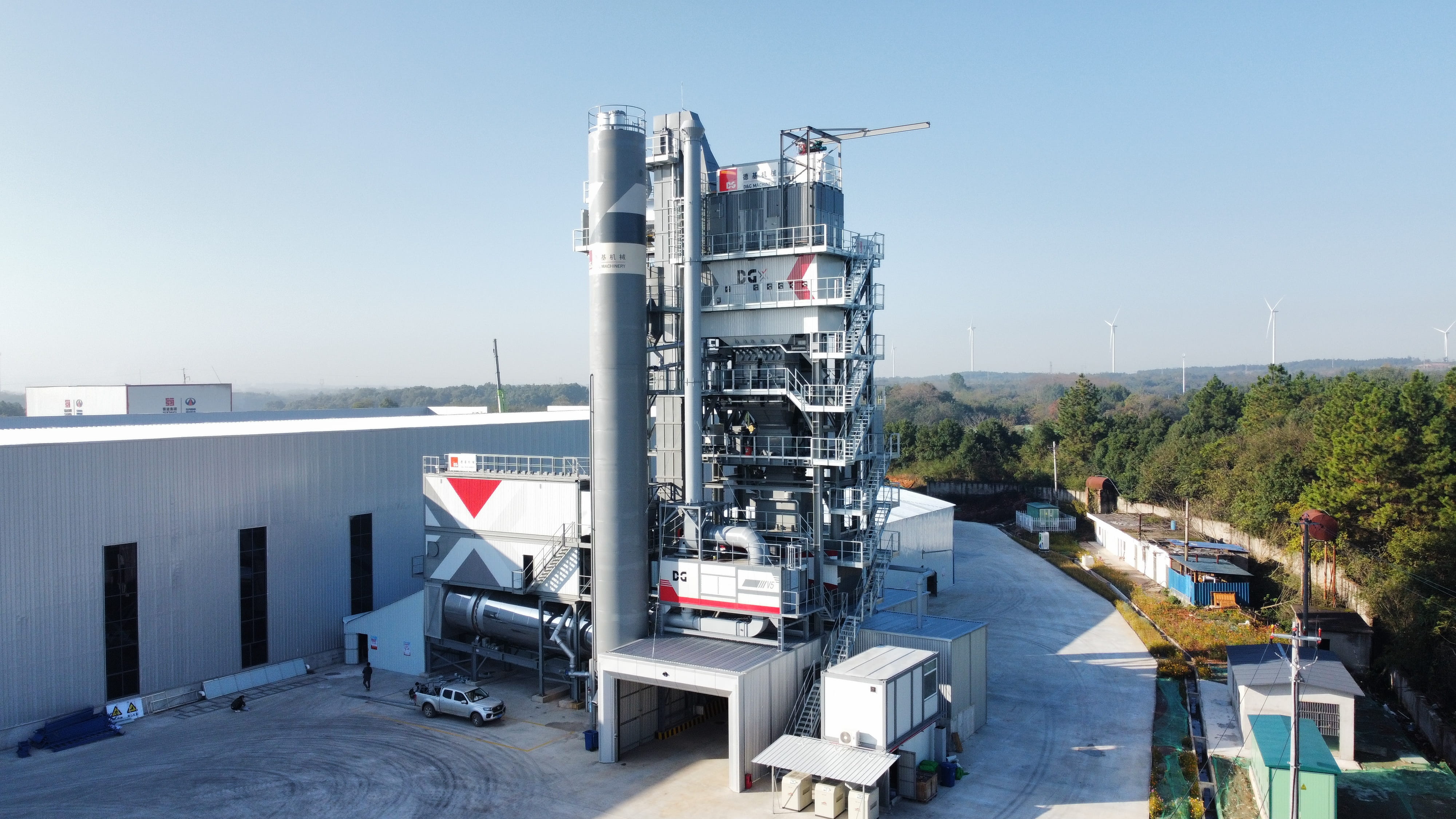

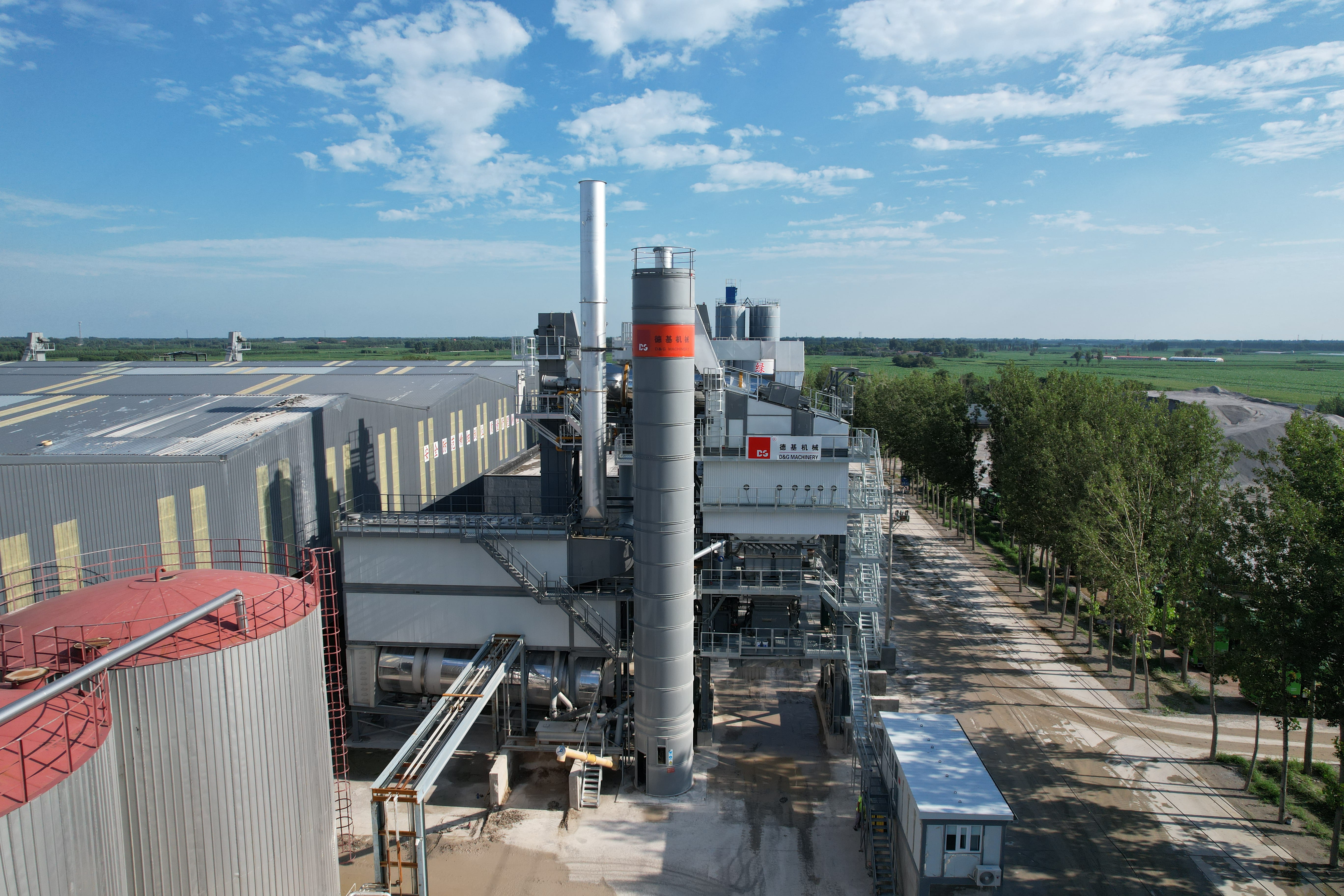

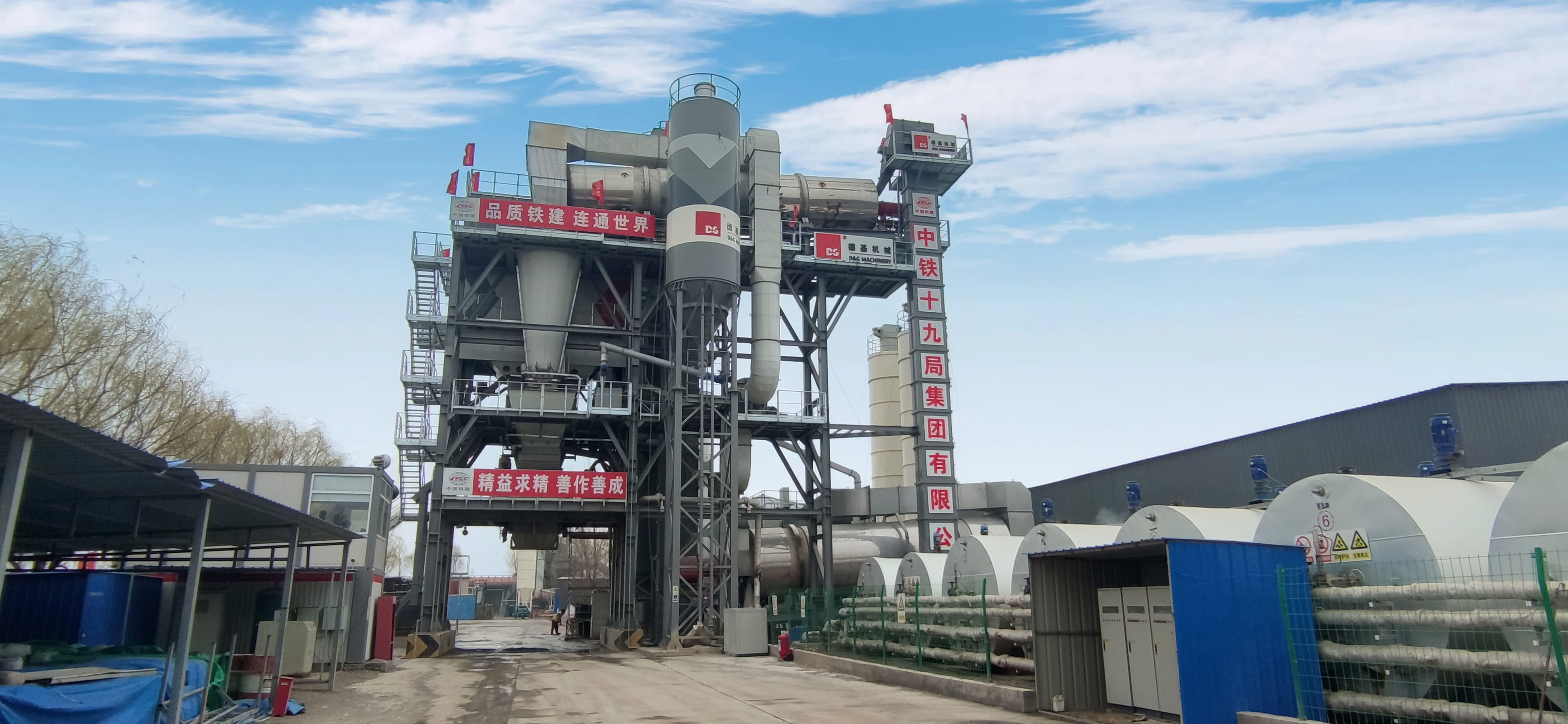

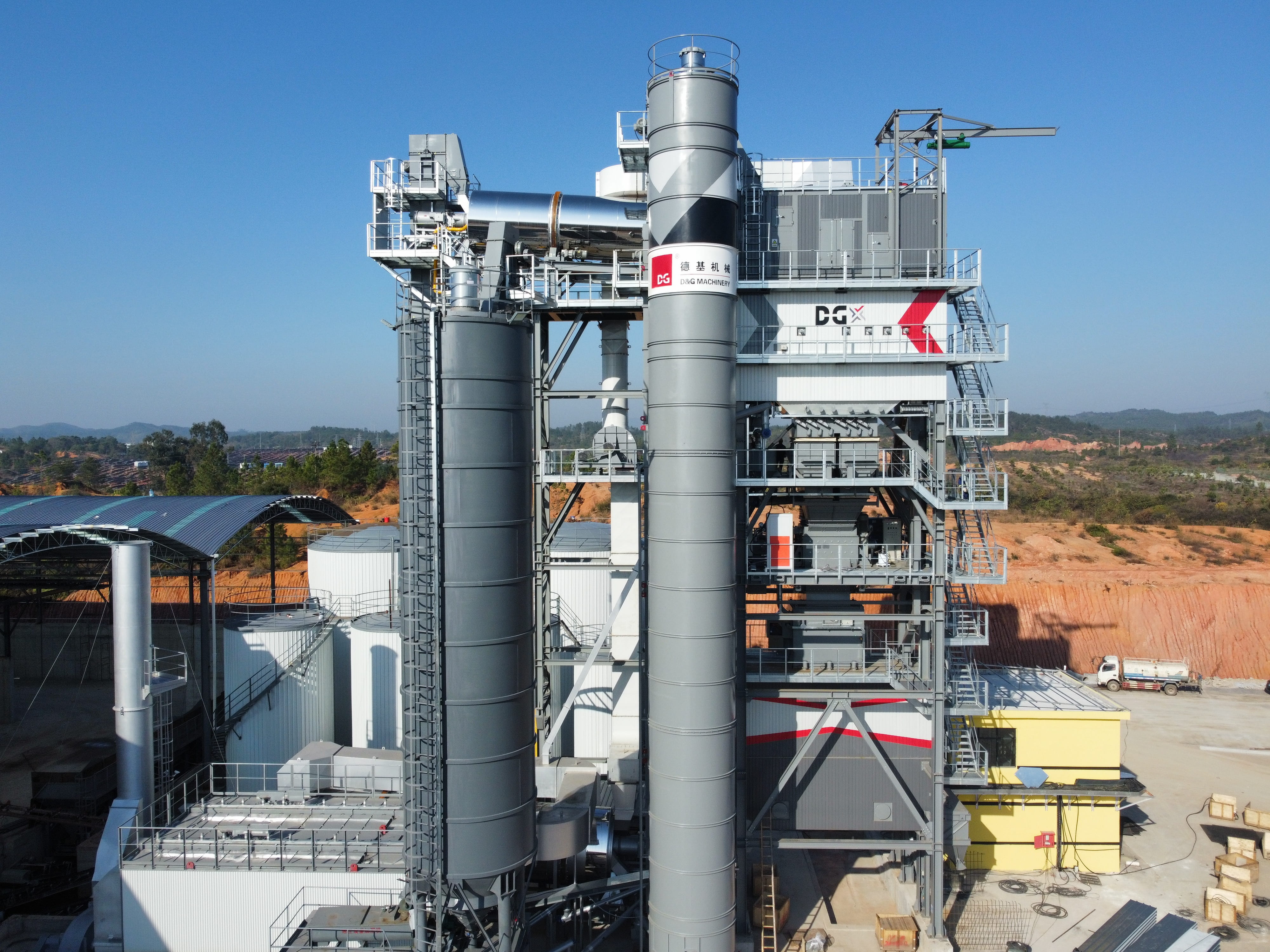

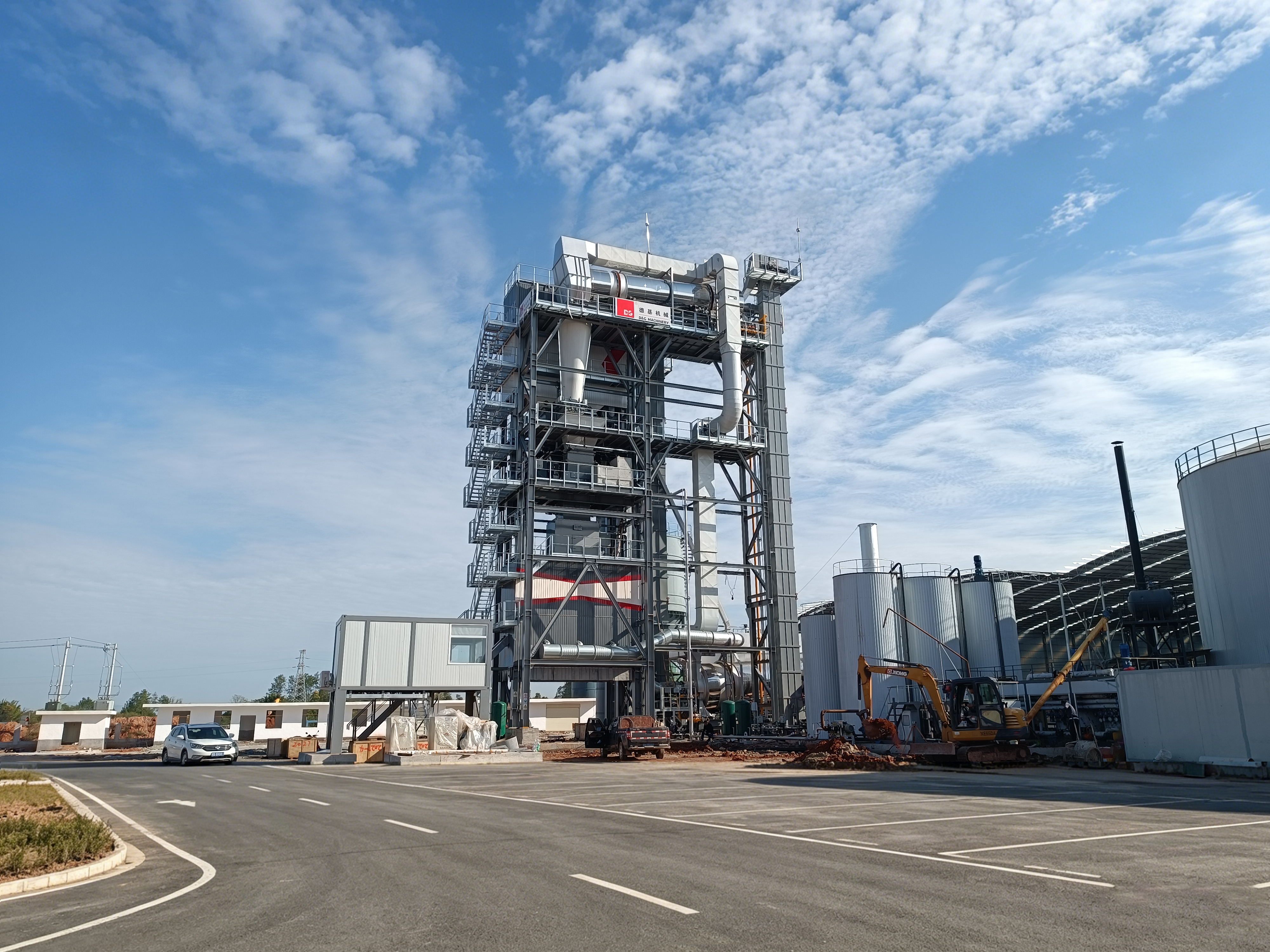

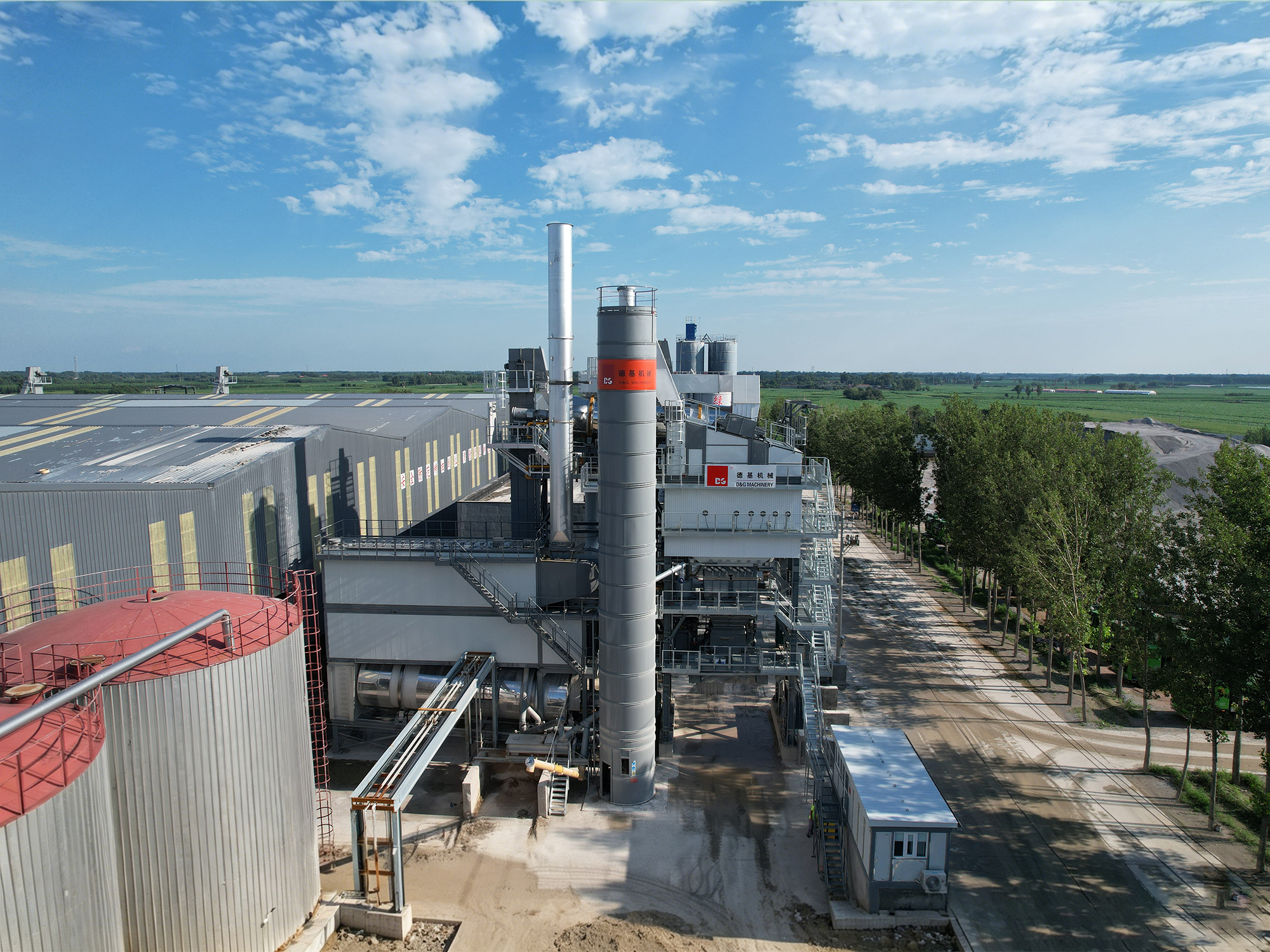

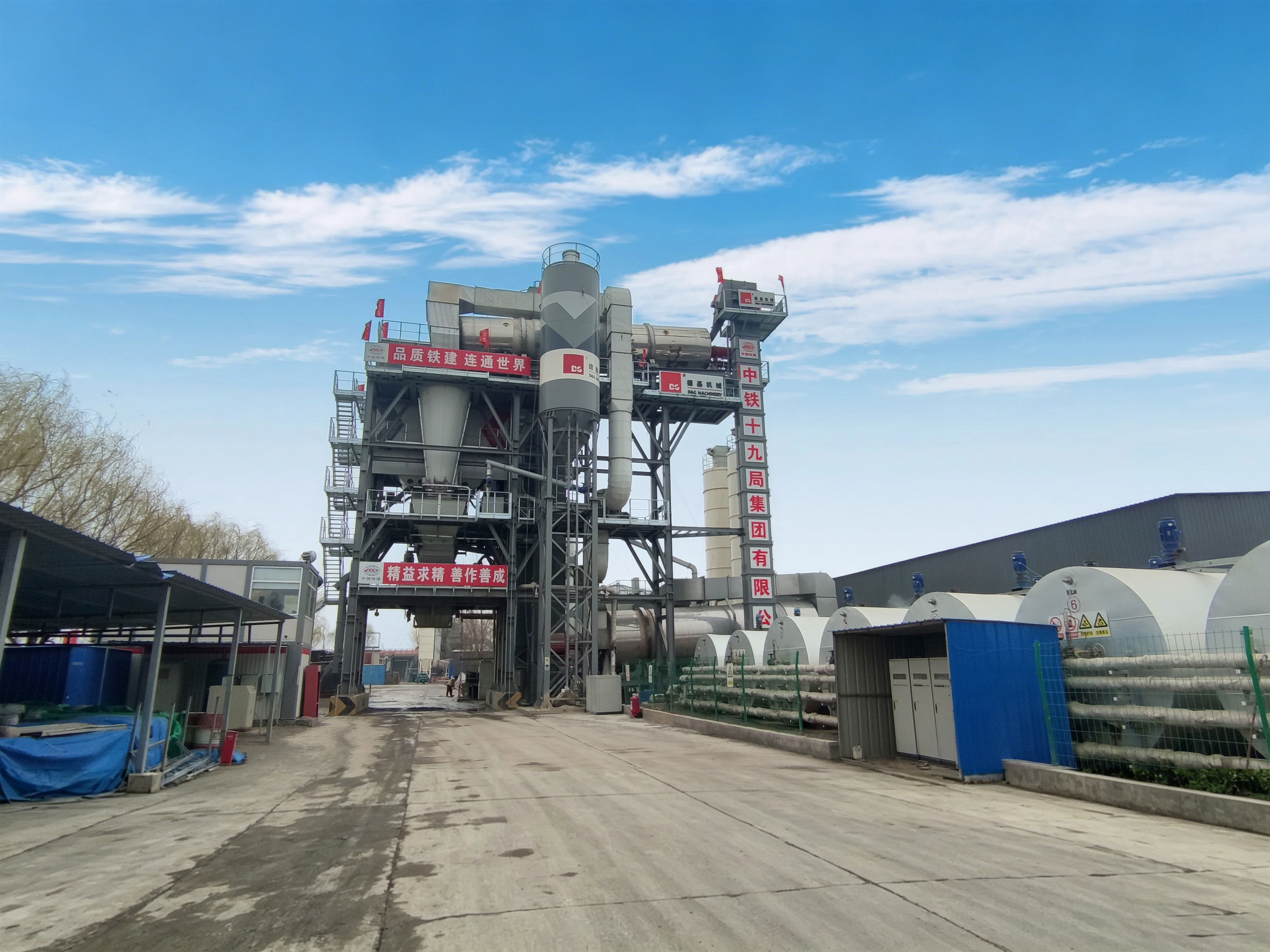

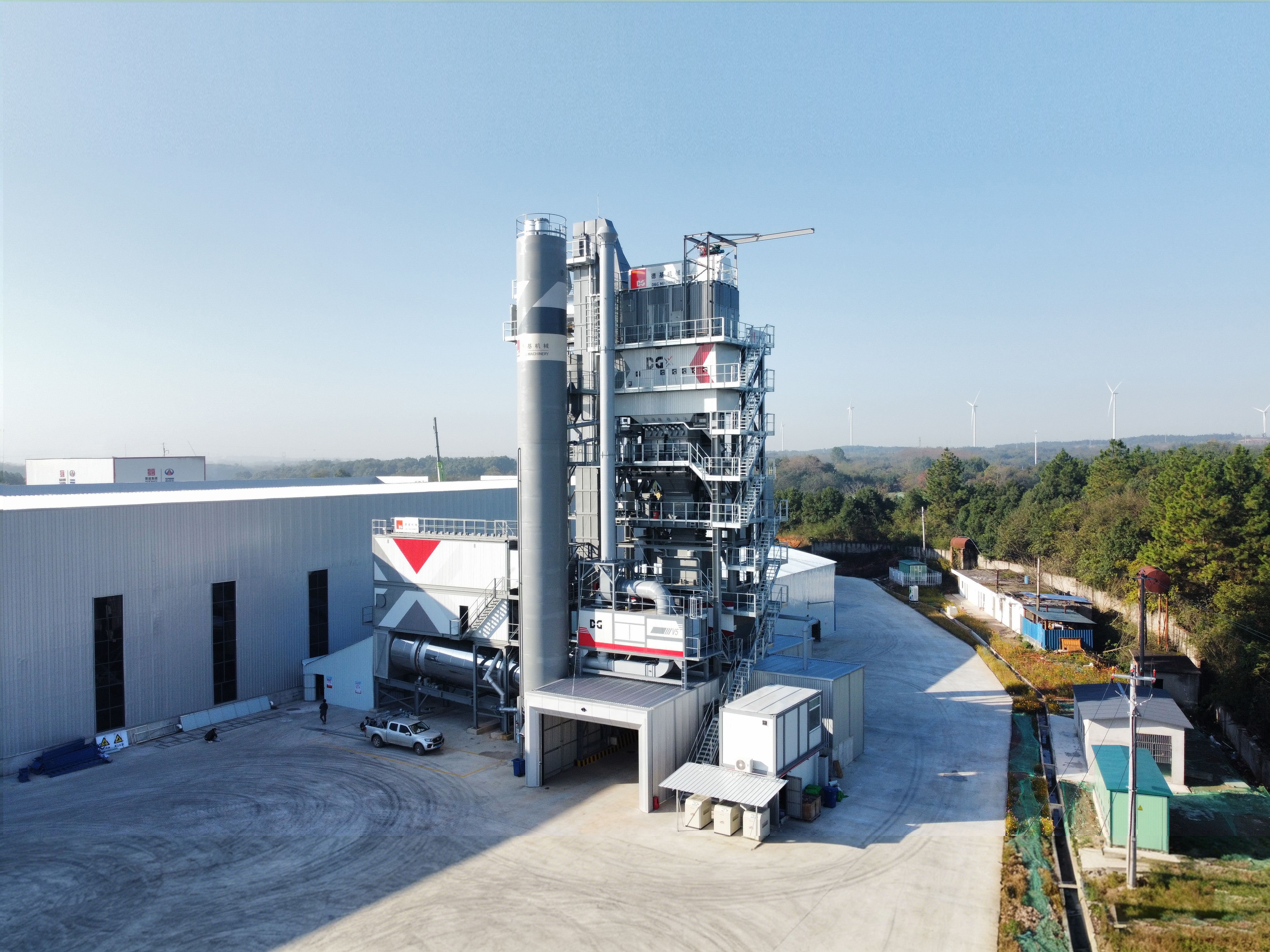

DGXR4000/DGXR5000

Products Spec.

Rated Capacity 320 - 440t/h

Mixer Capacity 4.5 - 6.5t

Contact Now

DGXR4000/DGXR5000 Parameters

Rated Capacity	320-360t/h	400-440t/h
Cold Aggregates Hopper	6 x 15m³( can be customized)
Dryer Drum-RAP Drying Capacity(Moisture Content 3%)	220t/h	260,330t/h
Fuel Type	Diesel/Fuel Oil/Gas/Coal
Dryer Drum-New Aggregate Drying Capacity(Moisture Content 3%)	390t/h	450t/h
Fuel Type	Diesel/ Heavy oil (Optional: Natural gas/Coal dust)
RAP Heating Method	Parallel-flow
Vibrating Screen	6 decks
Mixer:Capacity	4.5/5.5/6.5(t)	5.5/6.5(t)
