| Model | DGMC 1000 | DGMC 1500 | DGMC 2000 |
| Capacity (Moisture Content≤5%） | 60-80 tph | 100-120 tph | 140-160 tph |
| Cold Feeder | 4×6.5m³ | 4×8m³ | 4 or 5×8m³ |
| Dryer Drum (Counterflow Heating) | φ1.6×7.0m | φ1.9×7.5m | φ2.0×8.0m |
| Burner | Diesel/Heavy Oil/Natural Gas | ||
| Impulsive Type Dust Collector | 330㎡ | 380㎡ | 460㎡ |
| Mixer | External Continuous Mixer | ||
| Aggregate Weighing | Continuous Belt Scale+Conveyor Drum or Belt Speed Calibration | ||
| Reclamed Filler Weighing | VFD Weighing Screw | ||
| Bitumen Weighing | VFD Pump + Continuous Flowmeter, Double Calibration Weighing, Multi-points Force Spraying | ||
| Drag Conveyor | Drag Conveyor with 1.5m³ Drag feeder | ||

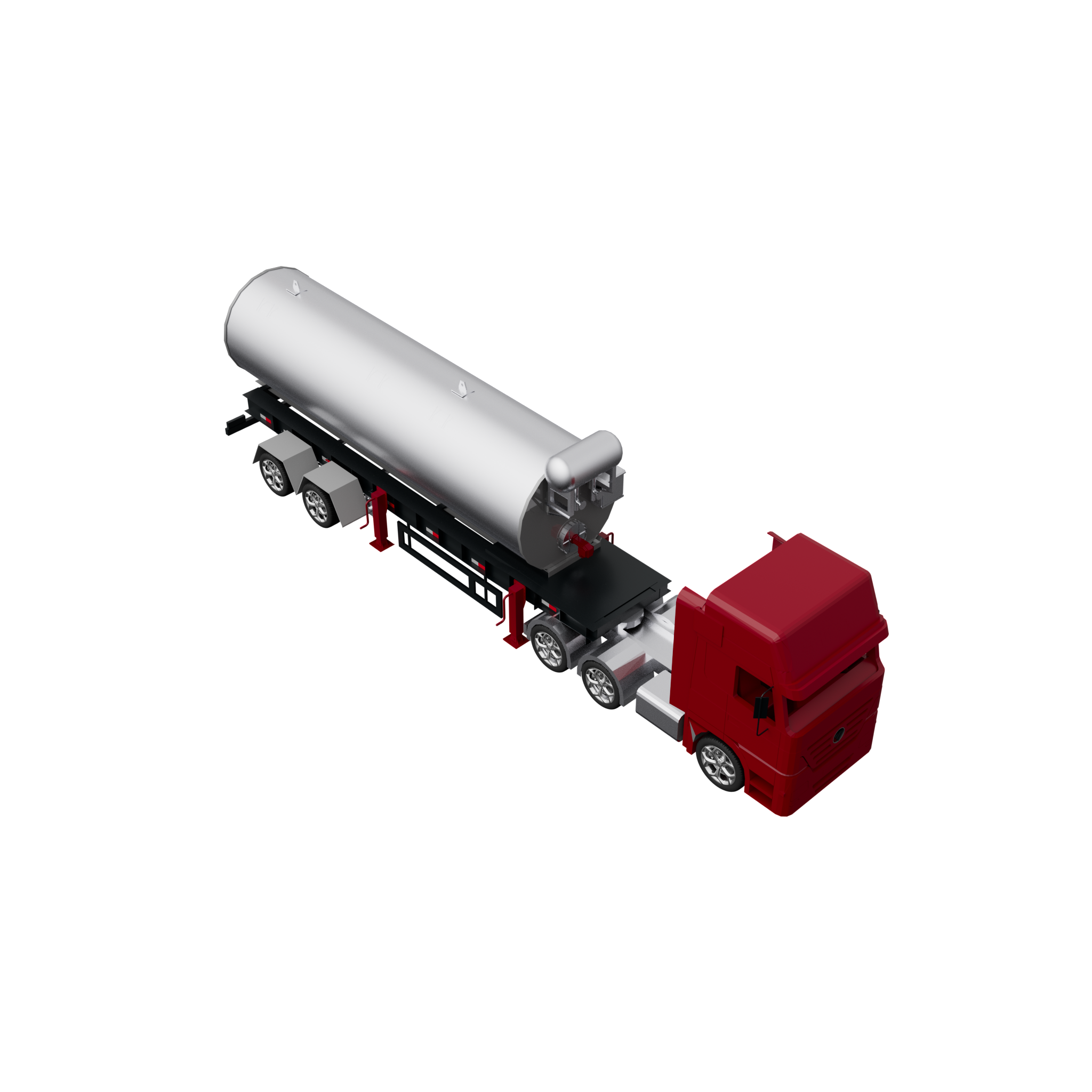

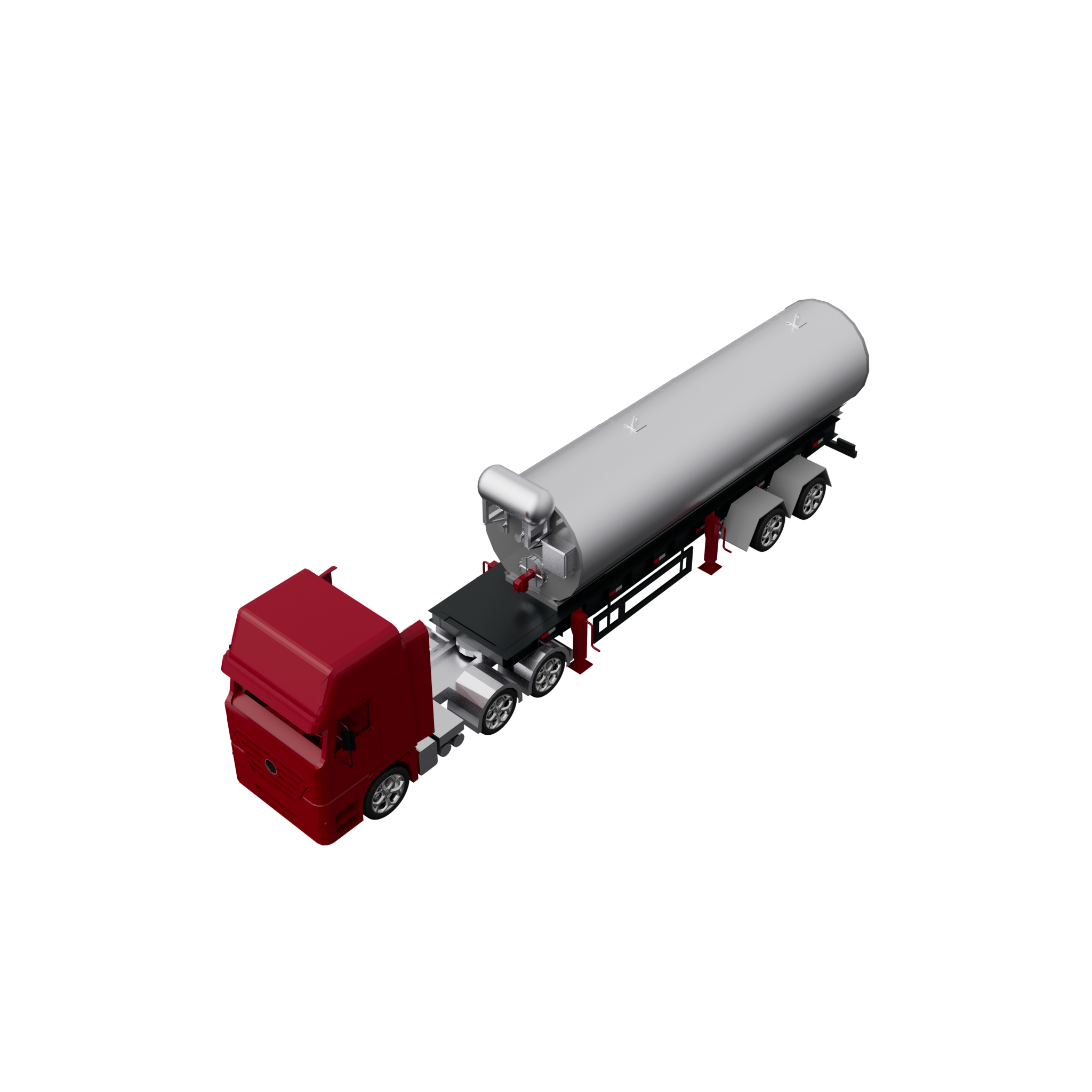

| Direct-heated Bitumen Tank | 35000L×1 | 35000L×1 | 35000L×2 |
| Diesel Tank | 10000L×1 | 10000L×1 | 10000L×1 |
| Control System | Automatic Computer Control (PLC Control),Ethernet Communication, with Air Conditioner | ||

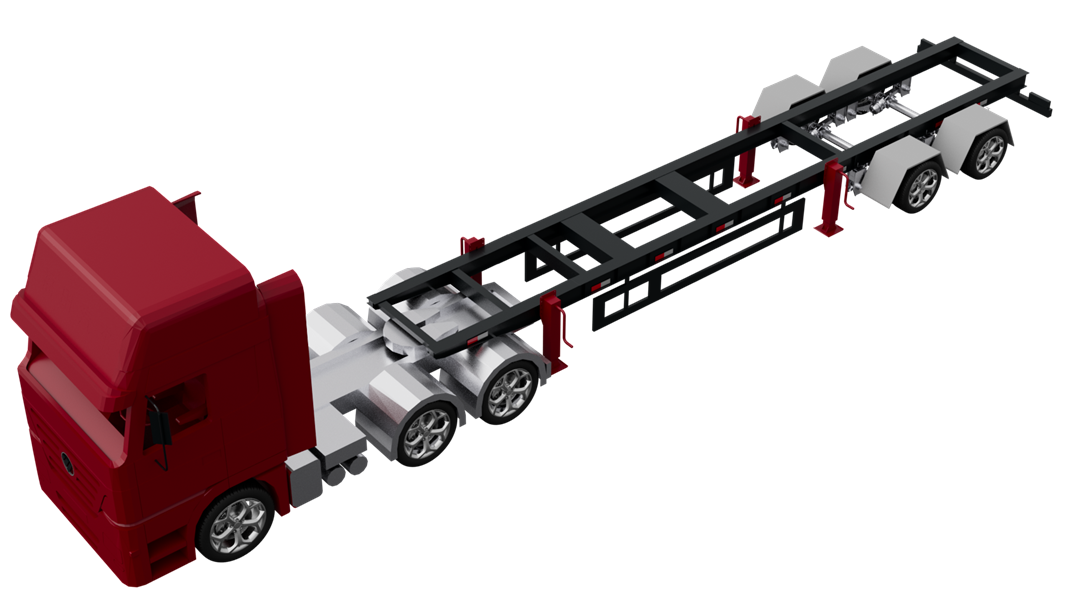

| Mobile Chassis Qty.（Standard) | 2 | 2 | 2 |
| Optional | |||
| Recycling Ring | |||
| RAP Cold Feeder | 1×10m³ | 1×10m³ | 1×10m³ |
| Fresh Filler Silo | 10m³ | 10m³ | 15m³ |
| Weighing System | Continuous Fresh Filler Scale, Continuous Weighing Bitumen Scale | ||
| Warm-mix System | Warm-mix Foaming System | ||
| Mobile Chassis | Optional for Bitumen Tank/ Fuel Tank | ||
